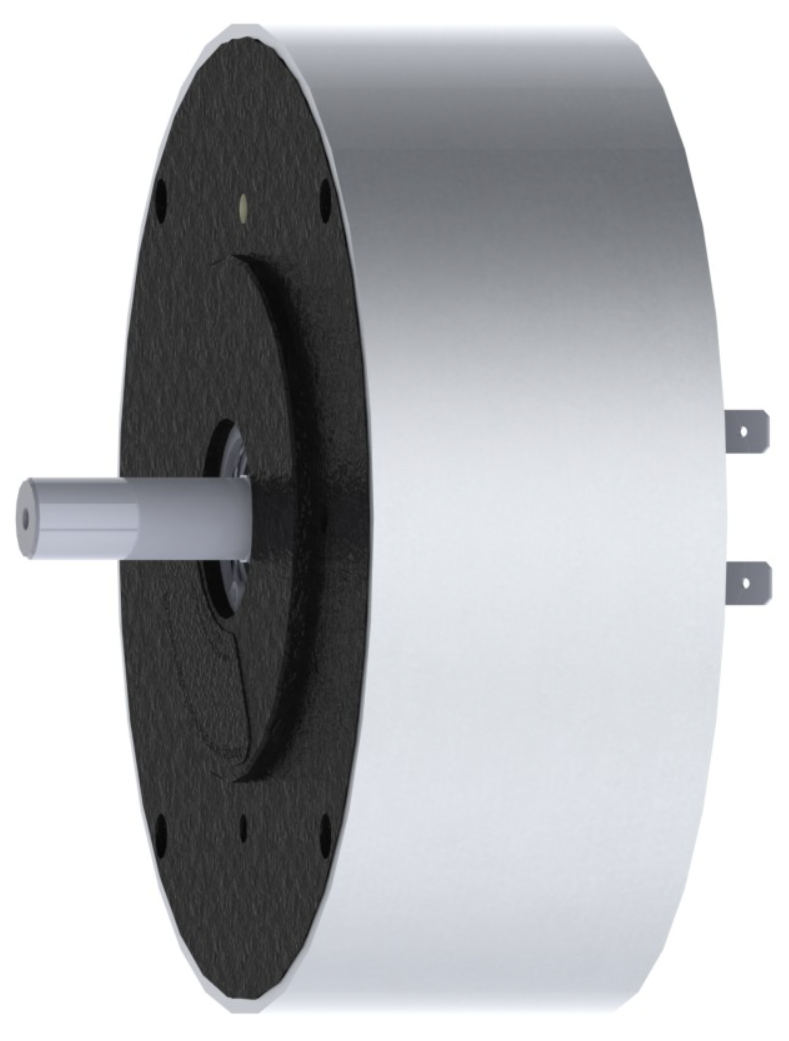

GM12 Motor

Printed armature motor

High precision compact series printed armature motor with AlNiCo magnets

GM12

Product details

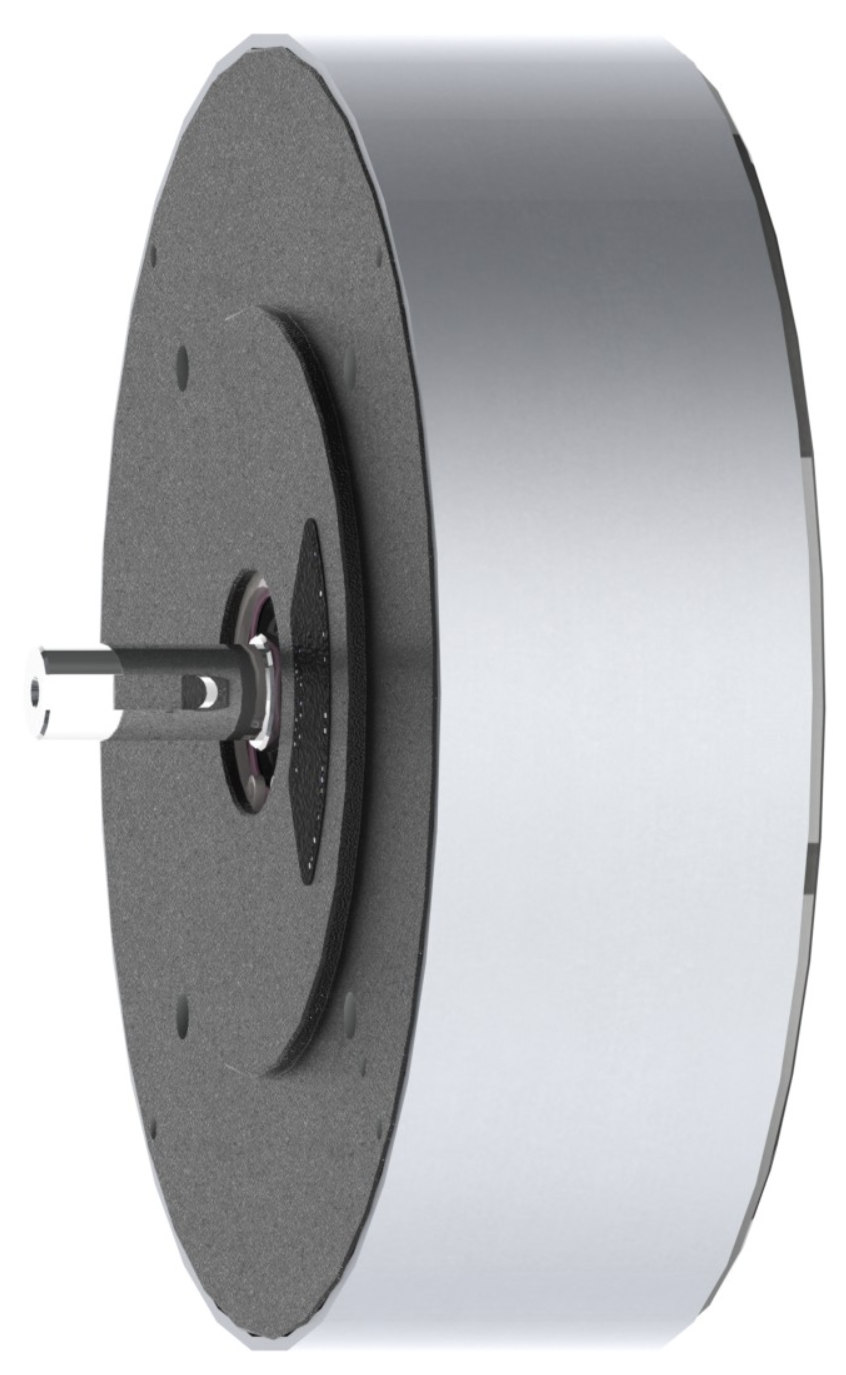

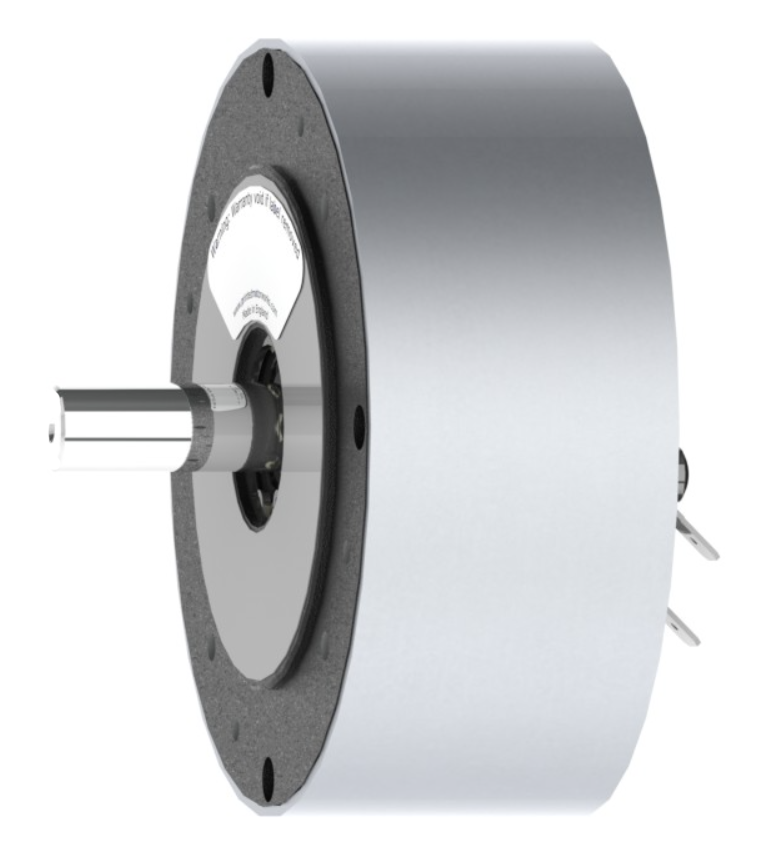

The GM series (High Precision Compact Series) is an extremely accurate high power pancake motor range with possible high ambient temperature (150C, 302F) operation, for high performance industrial applications. The range is available in 9cm, 12cm and 16cm armature diameter sizes, with standard and high power AlNiCo magnet option

Additionally, through our special build scheme every motor in the GM series is available as a low resistance, i.e. parallel ‘winding’ (designated LR) motor perfectly suited for low voltage, battery or higher speed applications. Historically this motor has been popular across high-end servo applications requiring a compact motor with perfect control

  • High Precision Compact Series Printed Armature Motor
  • 12cm Armature
  • Ironless Ultra Flat Construction
  • Zero Cogging - Ultra Low Velocity Ripple
  • Brushed DC Motor incorporating AlNiCo Magnet Technology
  • Custom Shaft & Housing Configurations Available
  • Brake, Encoder & Tacho Options

Rated

  • Torque 0.9 Nm
  • Power 284 W
  • Speed 3,000 RPM
  • Current 8.8 A rms

Peak

  • Torque - - - Nm
  • Power - - - W
  • Voltage 43.0 V
  • Max Speed - - - RPM

Power rating scale
