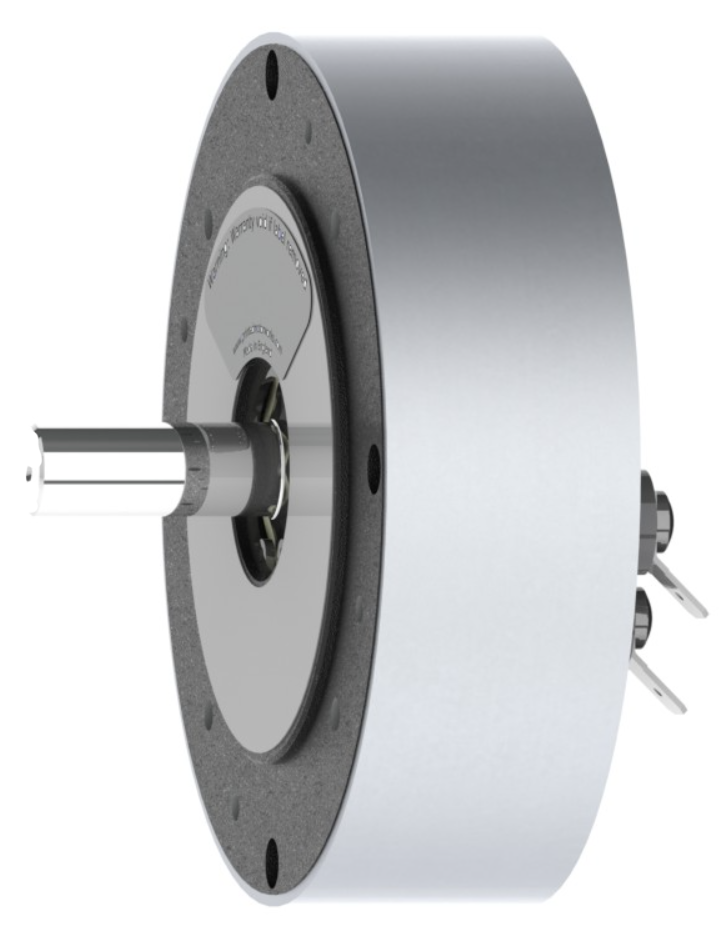

GN9 Motor

Printed armature motor

High precision slim series printed armature servo motor with NdFeB rare earth magnets

GN9

Product details

The GN series (High Precision Slim Series) is an extremely accurate high power motor range but is one third the axial thickness of the GM range, making it our flattest motor ever. The additional benefits of using NdFeB (Rare Earth) magnets are that it is possible for the motor to operate in low ambient temperature (-20C, -4F), for high performance industrial applications

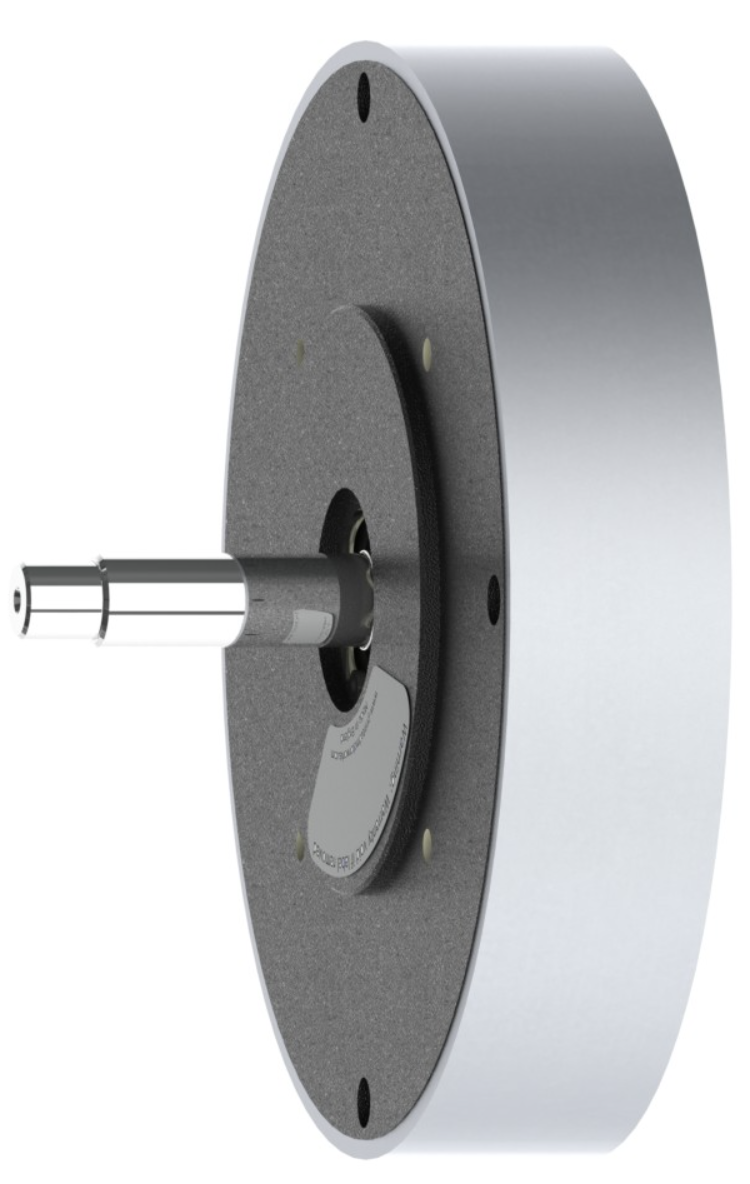

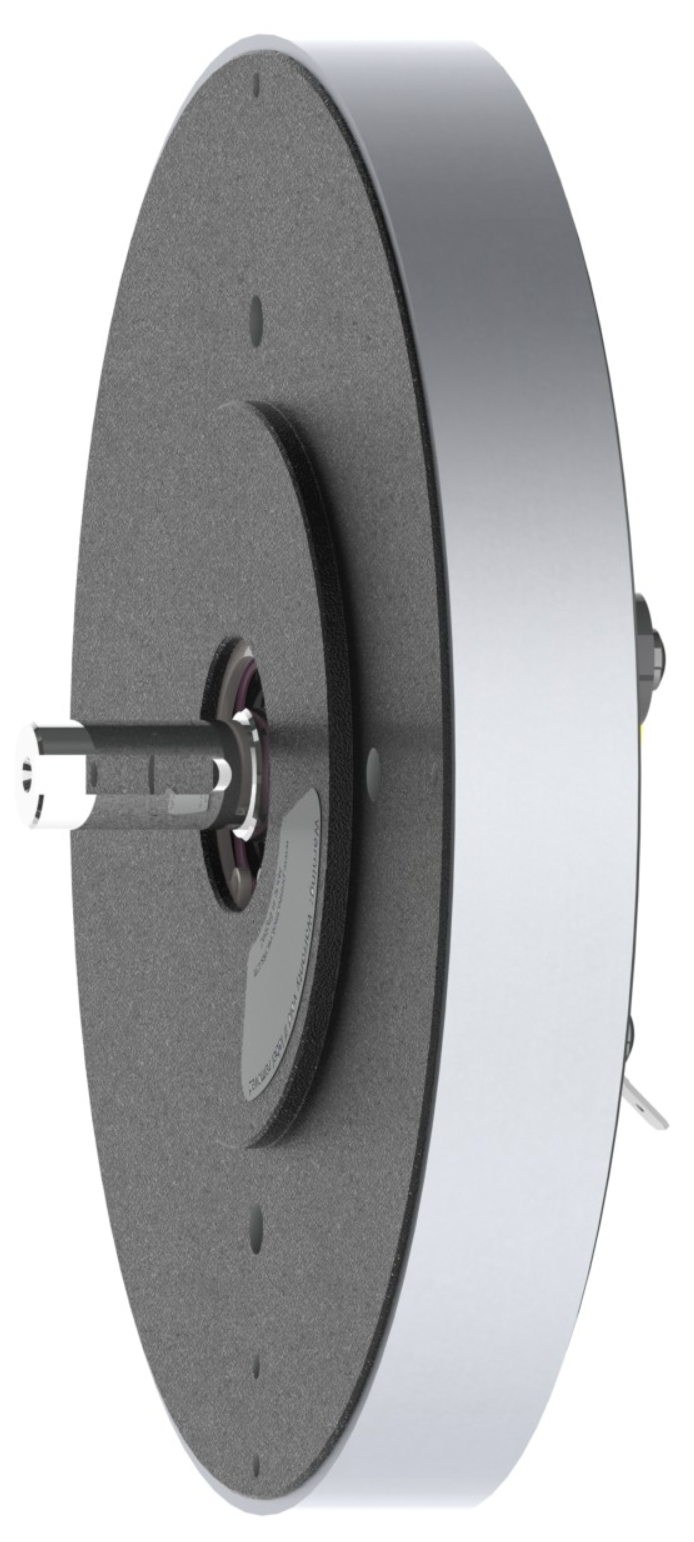

The range is available in 9cm, 12cm and 16cm armature diameter sizes. Additionally, through our special build scheme every motor in the GN series is available as a low resistance, i.e. parallel ‘winding’ (designated LR) motor perfectly suited for low voltage, battery or higher speed applications

  • High Precision Slim Series Printed Armature Servo Motor
  • 9cm Armature
  • Ironless Ultra Flat Construction
  • Zero Cogging - Ultra Low Velocity Ripple
  • Brushed DC Motor incorporating Neodymium Rare-Earth Magnet Technology
  • Custom Shaft & Housing Configurations Available
  • Gearbox, Brake, Encoder & Tacho Options

Rated

  • Torque 0.49 Nm
  • Power 154 W
  • Speed 3,000 RPM
  • Current 7.8 A rms

Peak

  • Torque - - - Nm
  • Power - - - W
  • Voltage 30 V
  • Max Speed - - - RPM

Power rating scale
